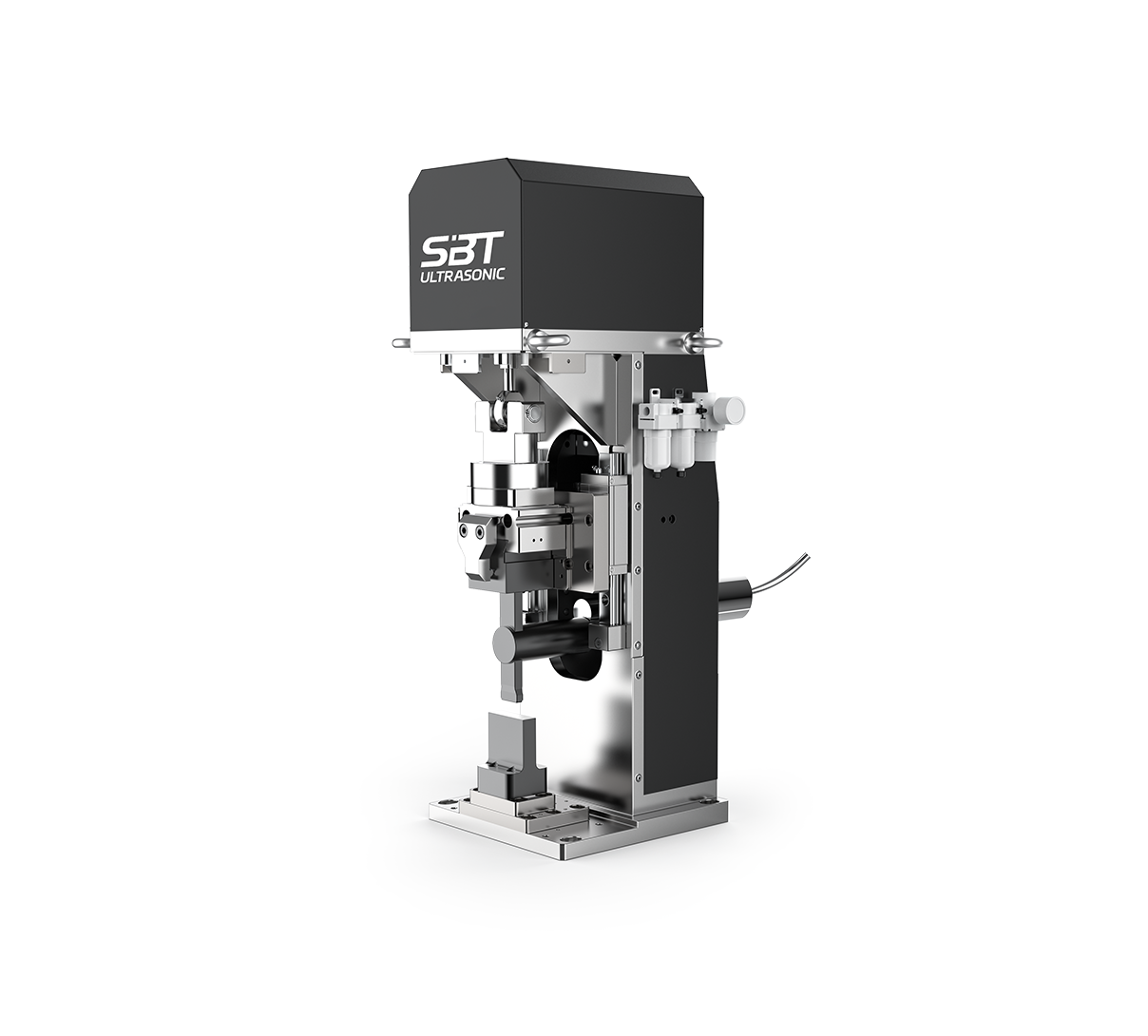

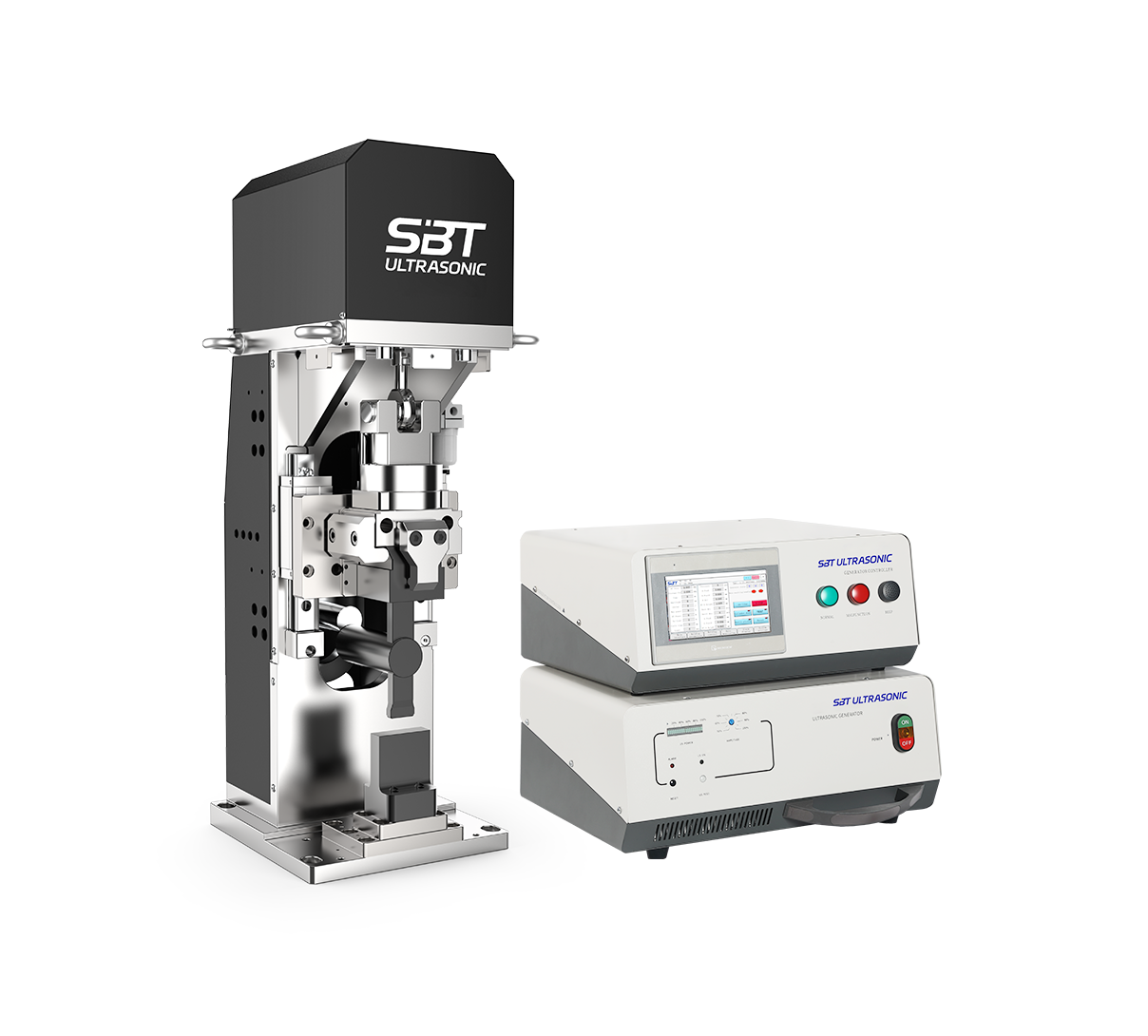

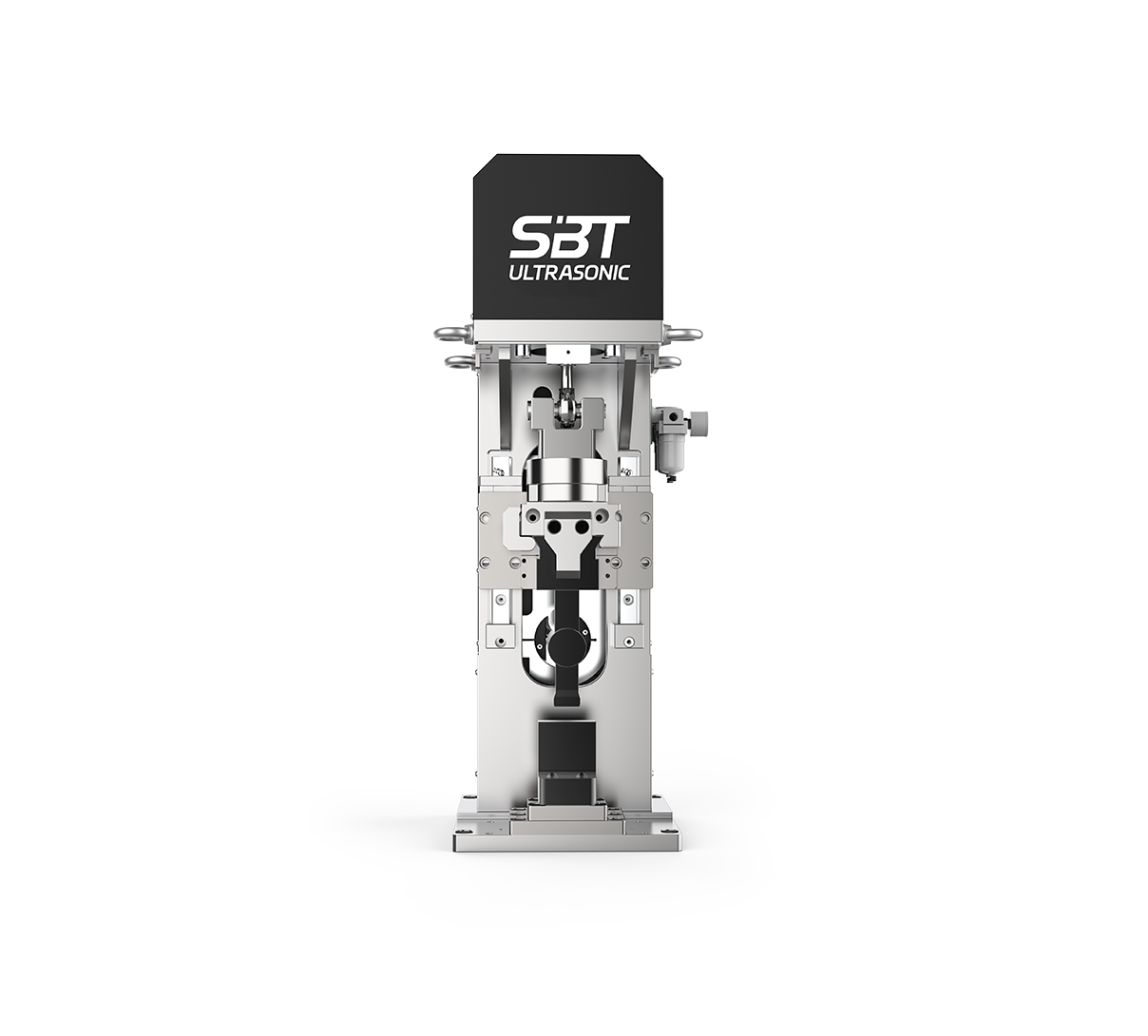

Standard Wedge Ultrasonic Welder WE
Application

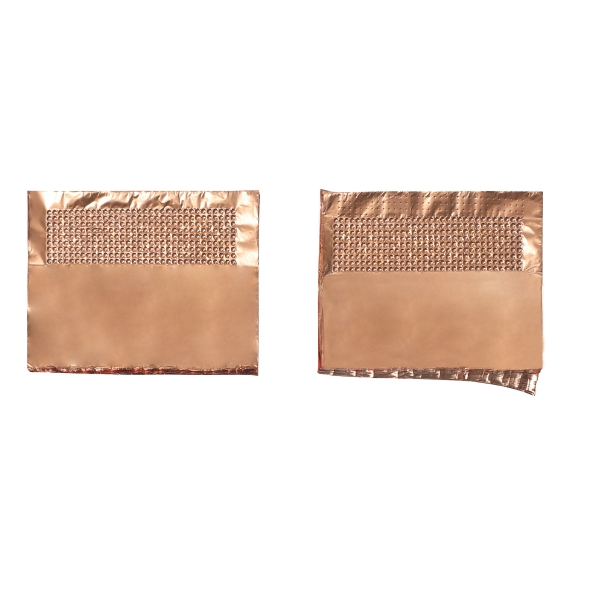

Multi-layer, thicker and larger welding area.

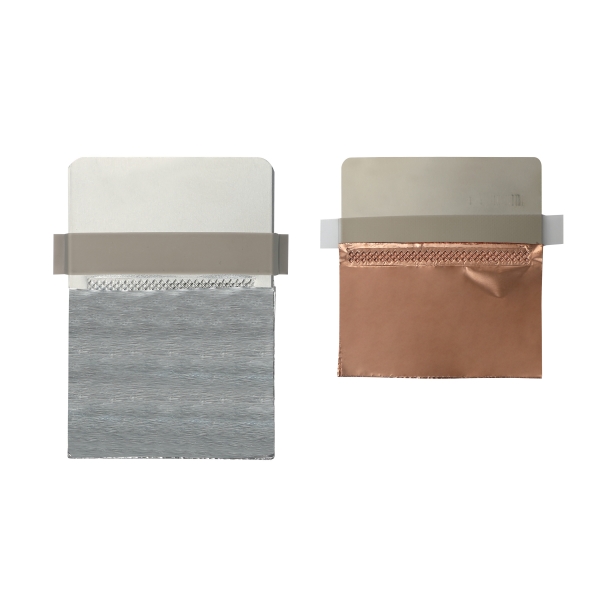

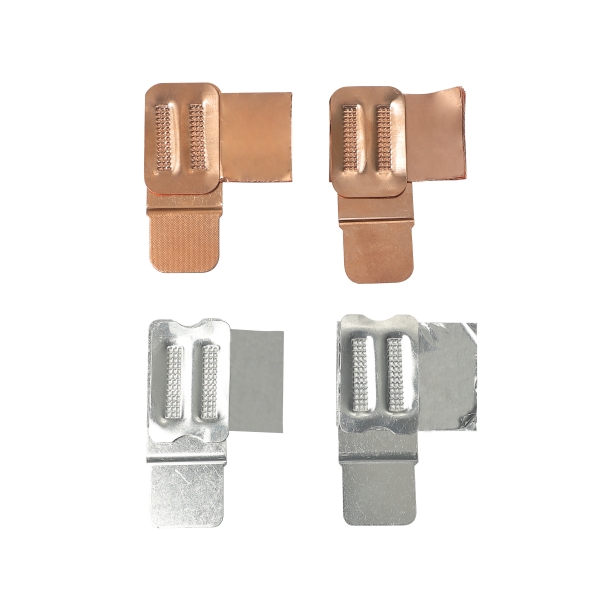

Prismatic cell and pouch cell tab welding.
Copper or aluminum cables welding.
Copper or aluminum busbar welding.
Features
Tapered bar vertical welding mode
Fully digital ultrasonic system
7-inch large touch screen display
Welding horn without deformation
Welding horn and anvil tooling are customizable
Precise positioning
Easy and safe operation
Online welding monitor
Technical Parameter
Model
2CS-WE Series
Frequency
20kHz
Rated Power
5-7kW
Transducer Power
6-8kW
Welding Pressure
≤7300N
Interact
Serial/Ethernet
NG Signal
I/O
Weight
165kg
Welding Mode
Time/Energy/Height
