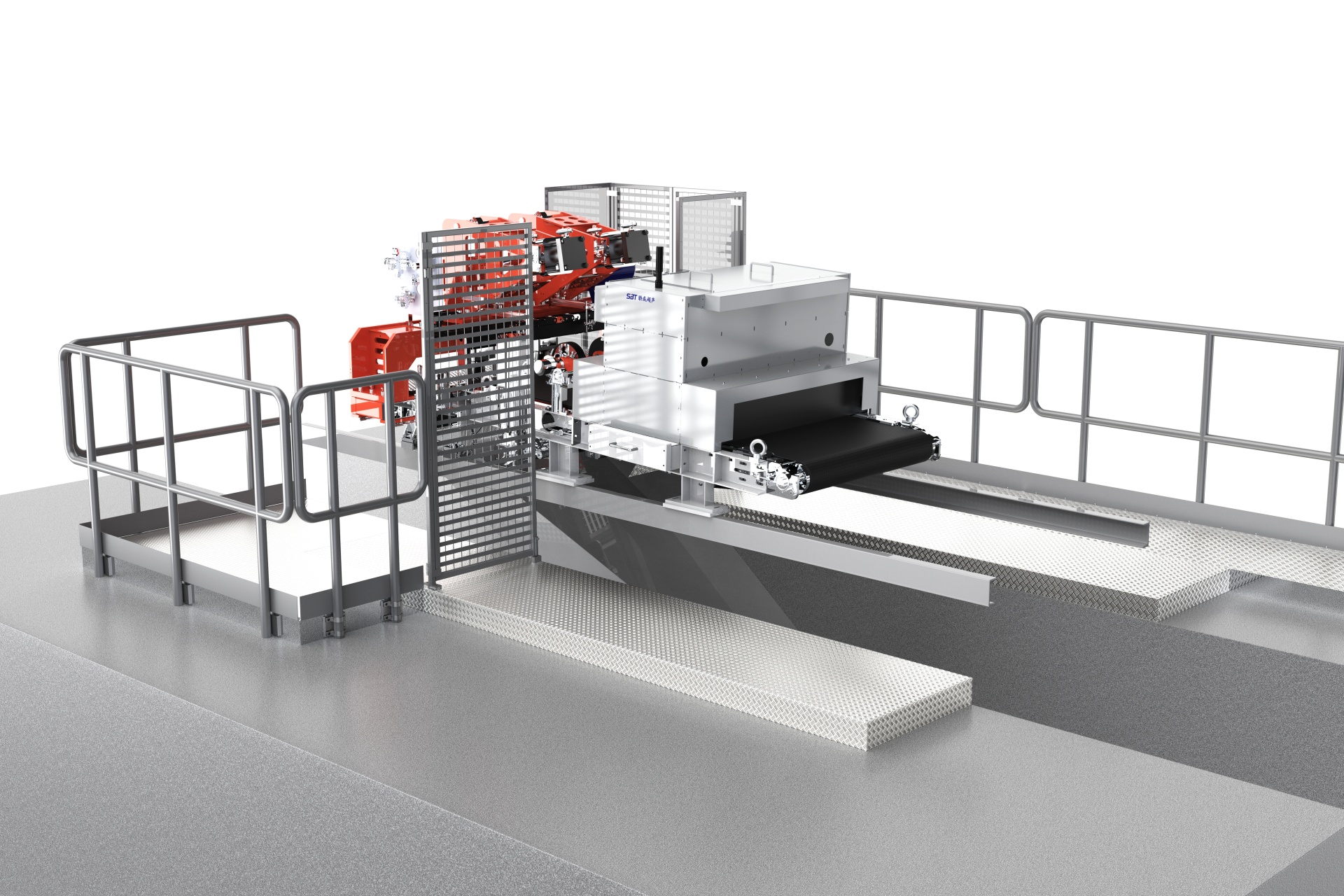

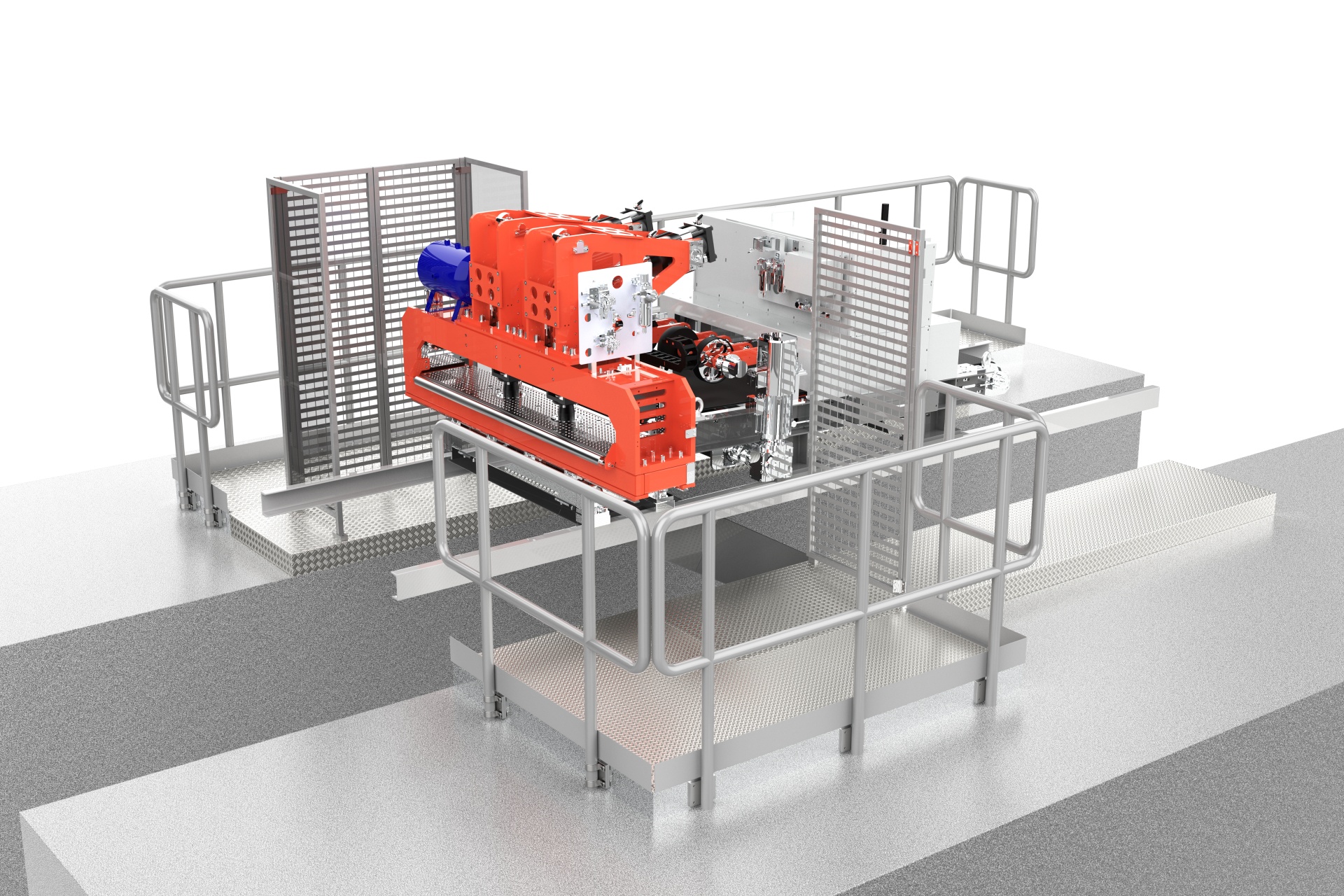

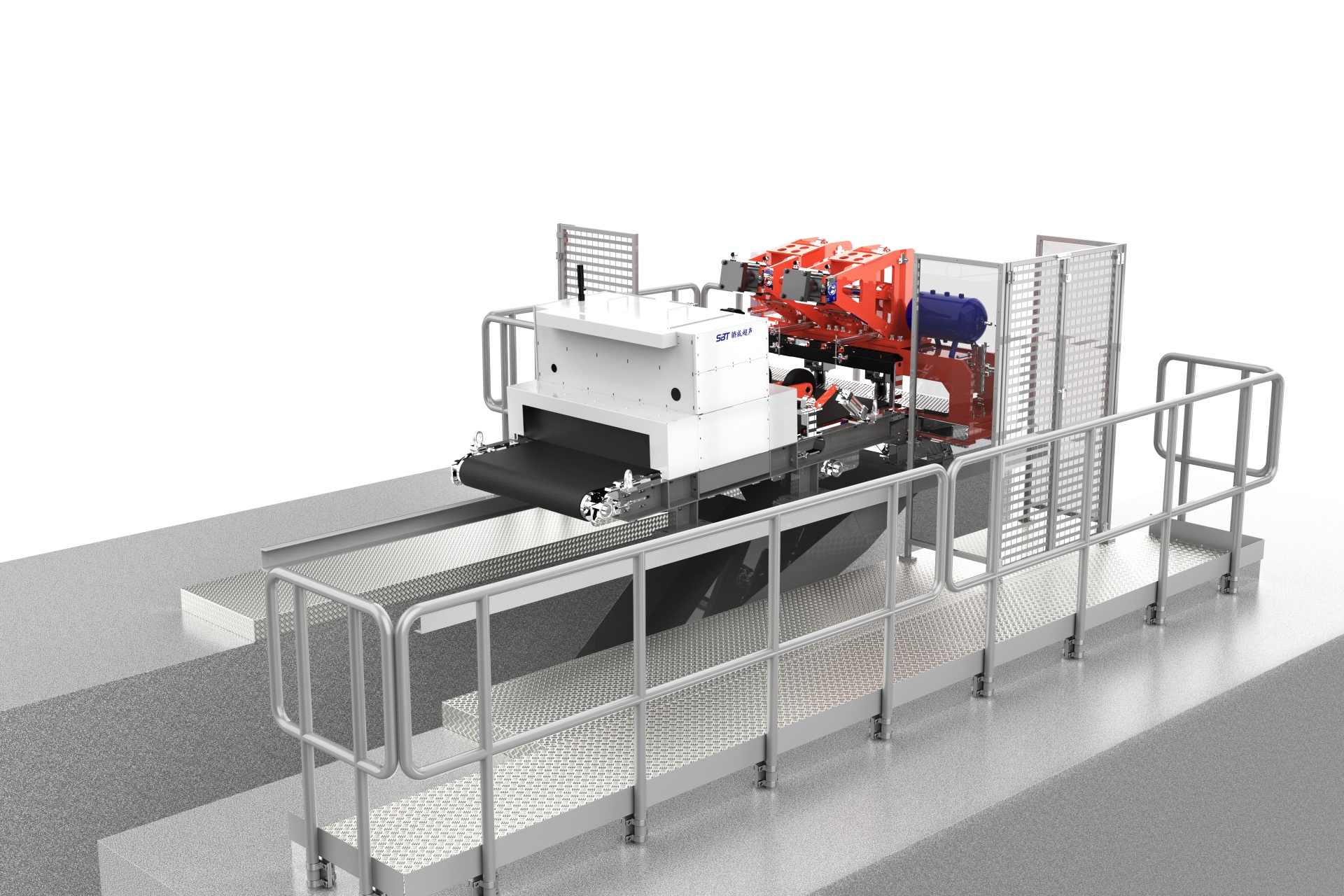

X-ray Inspection System
Application
Detection of metal and other impurities in tire rubber
Features
Detect the effective width of the film < 1m
The types of foreign bodies detected are metal, ceramic, glass
Detection accuracy Metal ≥?2.5mm; Ceramic and glass ≥?5mm
Detection accuracy can be adjusted according to demand
Technical Parameter
Conveyer width
1000 ㎜
Positioning precision of rejector
±5~10 ㎜
Rejection time
＜10 S
Rejection size
wafer with a diameter of 80 ㎜
Detection range
1~50 ㎜
Interface
USB
Added function
Save of NG images, abnormality warning
