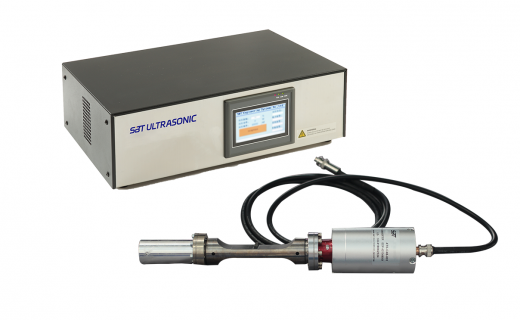

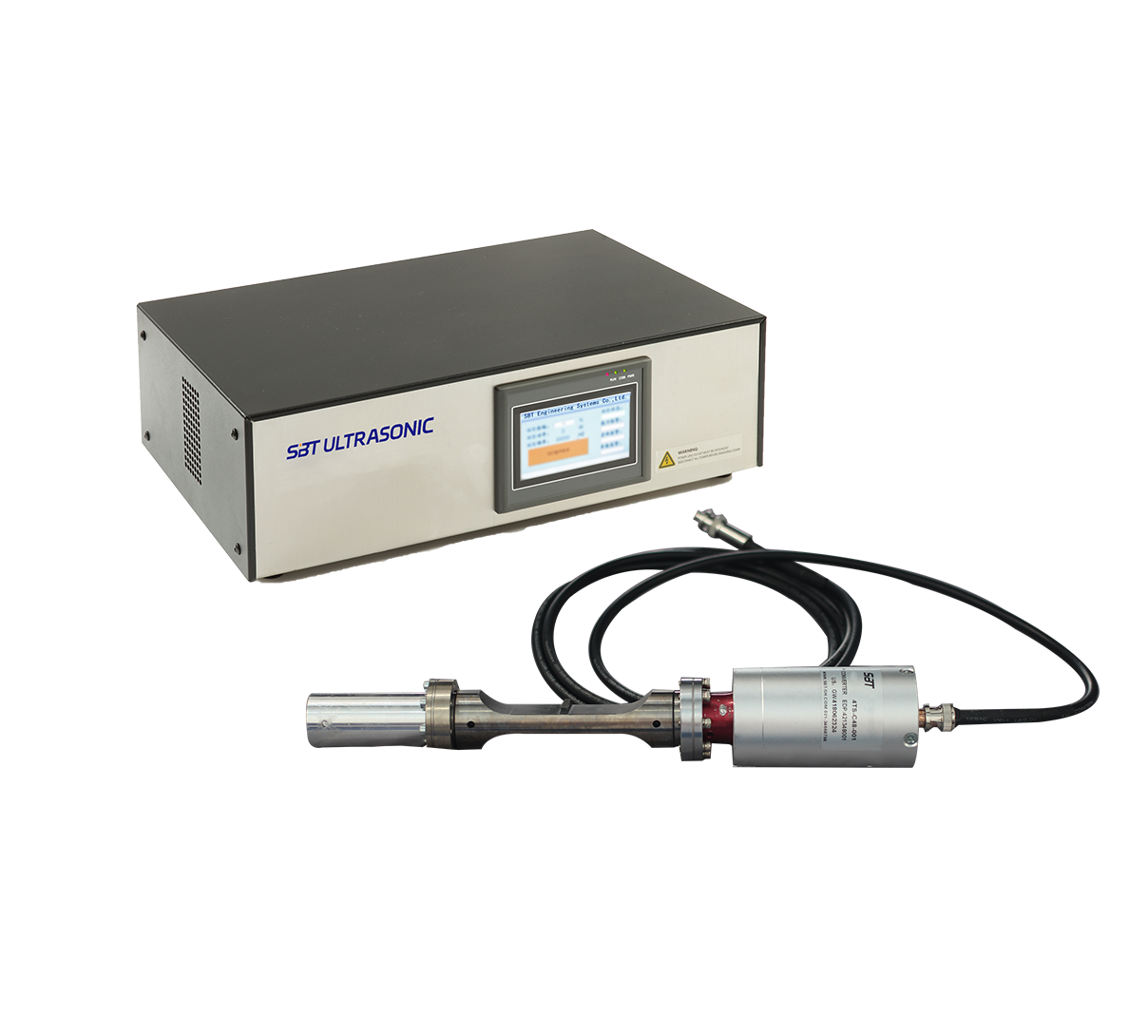

40kHz Ultrasonic Welder
Application
Small batteries such as cylindrical batteries and 3C bluetooth digital batteries.
Features
Digital high-frequency circuit design for optimized performance.
Simple operation and maintenance procedures.
Precise and comprehensive display of welding process parameters.
Integrated functions including energy feedback, information data exchange, and e
Technical Parameter
Frequency
40kHz±300Hz
Output power
600W, 800W
Rated voltage
200-240V, 50/60Hz
Rated current
10A
Protection functions
Overheating, overloading
Protection grade
IP20
Weight
10kg
Dimension of generator
430(W)×270(L)×130(H)
Dimension of ultrasonic stack
L300×φ(28/50.8)
