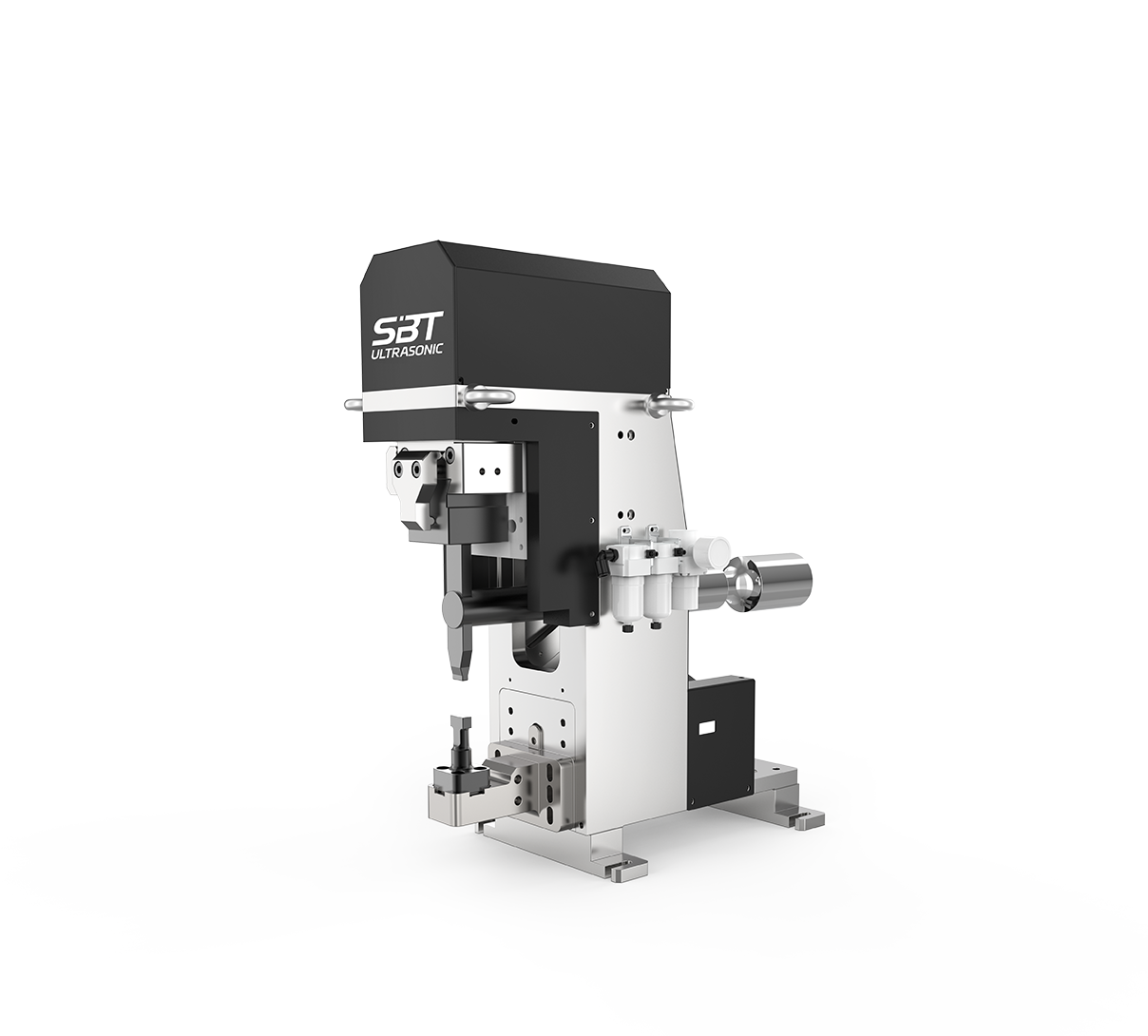

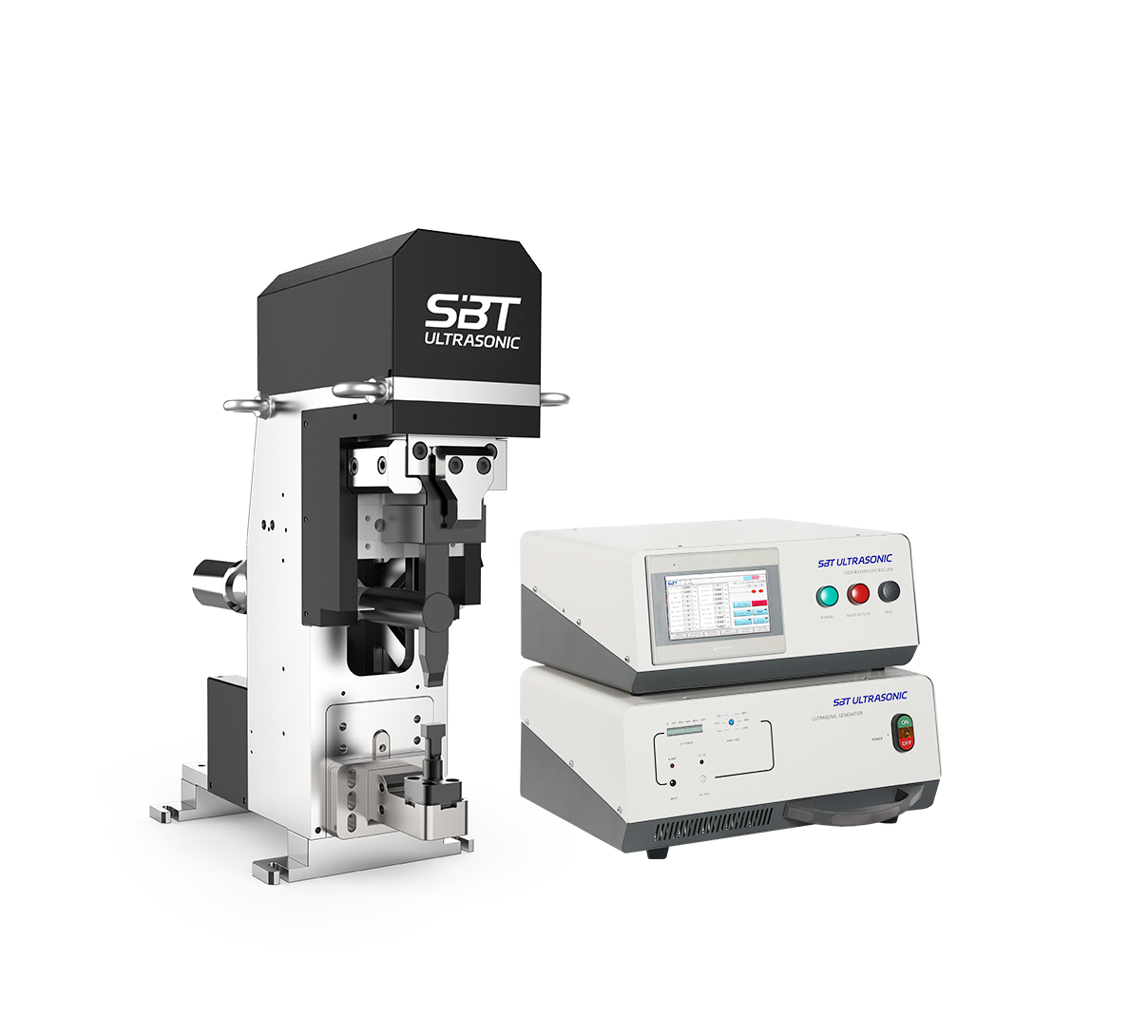

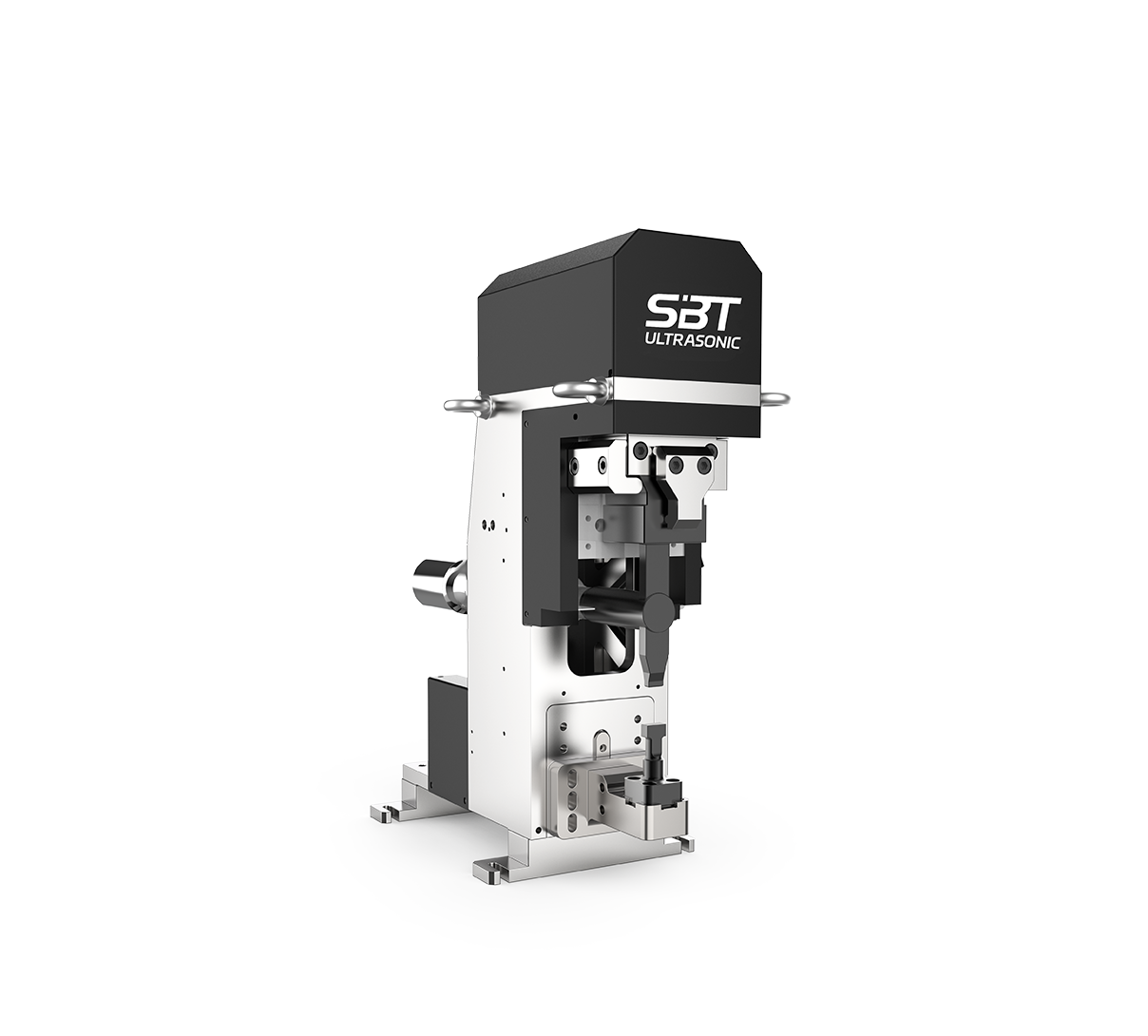

Small Wedge Ultrasonic Welder WES
Application
Unprotected square shell battery
Prismatic cell and pouch cell tab welding
Copper or aluminum cable welding
Copper sheet or aluminum busbar welding
Features
Integrated wedge structure
Compact and lightweight
Wedge-Reed structure with no welding horn deformation
Customizable welding horn and anvil tooling
Accurate welding positioning
Easy and safe operation
Optional welding quality online monitoring system
Technical Parameter
Model
2CS-WES Series
Frequency
20kHz
Rated Power
5-7kW
Transducer Power
6kW
Welding Pressure
≤4100N
Amplitude
≤65μm
Interact
Serial Port/Ethernet
NG Signal
I/O
Height Detection Accuracy
0.01㎜
Weight
91kg
Welding Mode
Time/Energy
